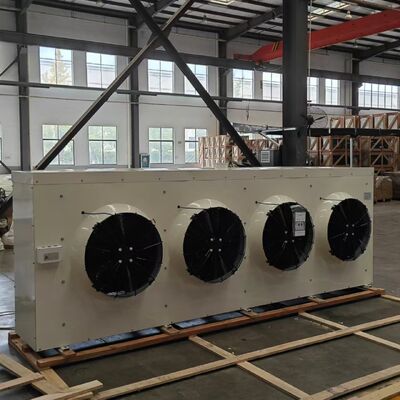

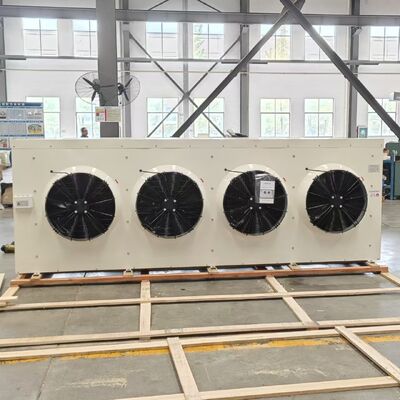

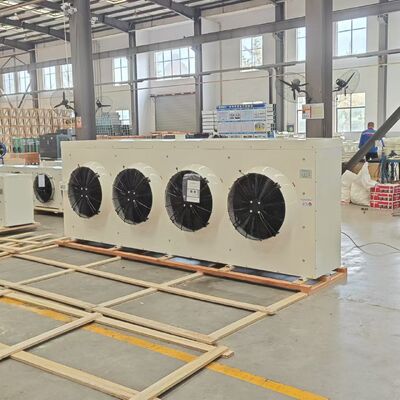

High-Capacity DL210 Evaporator for 210㎡ Large Commercial Cold Storage

Name: High-Capacity DL210 Evaporator for 210㎡ Large Commercial Cold Storage
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: DL-42.9/210
Price: 5,000.00 USD
Availability: InStock

Markenbezeichnung:	Ruifujie
Modellnummer:	DL-42.9/210
MOQ:	1
Preis:	Discussed
Lieferzeit:	1 Monat
Zahlungsbedingungen:	T/T, Western Union

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China

Modell:

DL-42.9/210

Nennkühlkapazität:

42,9 kW (42900 W)

Passender Bereich:

210㎡

Nennspannung:

380V

Anwendung:

Kühlraum, Gefrierschrank

Mindestbestellmenge:

1 Sätze

Garantie:

1 Jahr

Verpackung:

Holzkastenverpackung

Verpackung Informationen:

Holzkiste

Versorgungsmaterial-Fähigkeit:

100 Stück

Hervorheben:

DL210 commercial cold storage evaporator

high-capacity refrigeration evaporator

210㎡ large cold storage evaporator

Beschreibung des Produkts

High-Capacity DL210 Evaporator for 210㎡ Large Commercial Cold Storage

Product Overview

The DL210 Evaporator delivers robust continuous cooling with 42.9kW nominal capacity, specifically engineered for 210㎡ large commercial cold storage facilities.

Key Advantages

Robust Continuous Cooling: 42.9kW nominal cooling capacity, perfectly matched for 210㎡ large cold rooms, maintaining precise, consistent low temperatures for heavy-duty commercial cold storage.
Uniform Wide-Area Airflow: 24000 m³/H high-volume airflow with 15m throw range, eliminating temperature stratification and cooling dead zones in expansive storage spaces.
Industrial Quad-Fan Operation: 4×414W 380V fans with 500mm diameter, built for reliable, non-stop airflow delivery in demanding industrial refrigeration applications.
Powerful All-Round Defrost: 7200W fin defrost + 2400W drain pan defrost, efficiently clears heavy frost buildup in high-humidity environments to avoid operational downtime.
Enhanced Refrigerant Flow Path: 25.8L large tube volume with φ25/φ48mm inlet/outlet tubes, optimizing refrigerant circulation to boost overall heat exchange efficiency.

Technical Specifications

Model	DL-42.9/210 (DL210)
Nominal Refrigeration Capacity	42.9 kW (42,900 W)
Applicable Cold Room Area	210 ㎡
Tube Volume	25.8 L
Refrigerant Inlet/Outlet Diameter	φ25 / φ48 mm
Fan Configuration	4 units
Fan Diameter	500 mm
Fan Voltage	380 V
Total Fan Power	1,656 W (4 × 414 W)
Air Volume	24,000 m³/H
Air Throw Range	15 m
Fin Defrost Power	7,200 W
Drain Pan Defrost Power	2,400 W

Manufacturer Profile

With over 20 years of experience, Shenzhen Ruifujie Technology Co., Ltd. is a large modern enterprise focusing on R&D, production and sales of refrigeration products. We specialize in developing and manufacturing scroll, piston, rotor, semi-hermetic and screw refrigeration compressors, which are exported worldwide. Endowed with strong technical strength and rich experience in cold storage, freezing, quick-freezing equipment and ice machines, we provide professional OEM/ODM refrigeration services and have stable global cooperative partnerships, winning high praise for high-quality refrigeration compressors and competitive prices.

Packaging & Shipping

Supply Ability	1000000 pieces/year, MOQ is usually one piece
Shipping Time	Sample order in stock within 3 days, Bulk order generally 10-15 working days after receiving deposit
Shipping Method	Support by sea, by air, by express (DHL, FedEx, UPS...)
Payment Terms	TT/Western Union - 30% Advance Payment, 70% Final Payment
Shipping Port	Ningbo Port, Shanghai Port, Shenzhen Port

Frequently Asked Questions

Q: What is your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer's exact situation.

Q: What are the main products?

A: Semi-hermetic compressor, Hermetic Compressor, Condenser Unit, Air Cooler, Spare Parts, Chillers and Evaporators.

Q: What is your delivery time?

A: 1. For Sample order in stock, we aim to ship the compressor within 3 days.
2. For any Bulk order, generally we ship compressor in 10-15 working days after receiving deposit.

Q: What about the services and aftersale?

A: We guarantee product quality with a 1-year warranty. Our team ensures reliable support throughout and after your purchase.

Q: What are your price terms?

A: We offer EXW or FOB Shenzhen pricing.

Schlagworte:

Verdampfer in der Kühlanlage

Luftkühlerverdampfer

_ refrigerator evaporator
