Produktdetails:
Zahlung und Versand AGB:
|
| Kolbenartig: | Rolle | Stromversorgung: | AC Power |
|---|---|---|---|
| Drive-Modus: | Elektrische | Pferdestärke: | 5HP |
| Konfiguration: | Stationäre | Temperatur: | MED/hohe Temperatur |
| Schmierungs-Art: | Öl-los | Stummer: | Ja |
| Gewicht: | 36.1Kgs | Öleinspritzung: | 1.95L |
| Spindel: | 3,14 | EER: | 10,7 |
| DBA: | 71,0 | ||
| Markieren: | copeland Wechselstrom-Kompressor,Handelsabkühlungskompressor |
||

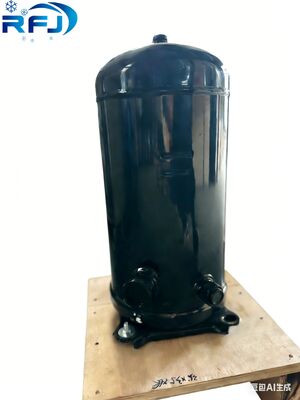

Copeland Scroll Klimaanlage bedingt Kompressor R22 380v 5HP ZR61KC-TFD-522
Technische Daten:
Copeland Scroll Kompressor ZR61
1. höhere Effizienz
2. tiefe Schallpegel
3. überlegene Haltbarkeit
4. Leistung: 5HP, 380V, R22
Wir können mehr ZR Modelle wie folgt liefern:
| Phase | Modell | Pferdestärke / HP | Verschiebung (m3 / h) | ARI 7,2 / 54,4ºC | Gewicht (kg | Höhe / mm | |
| Kühlung (W) | Eingabe (W) | ||||||
| 1 Phase | ZR16K3-PFJ | 1,33 | 3.97 | 4010 | 1320 | 25.9 | 370.4 |
| ZR18K3-PFJ | 1.5 | 4.37 | 4400 | 1440 | 25.9 | 370.4 | |
| ZR20K3-PFJ | 1,69 | 4.76 | 4890 | 1600 | 25.9 | 370.4 | |
| ZR22K3-PFJ | 1,83 | 5.34 | 5330 | 1730 | 25.9 | 382,8 | |
| ZR24K3-PFJ | 2 | 5,92 | 5920 | 1870 | 26.3 | 382,8 | |
| ZR26K3-PFJ | 2.17 | 6.27 | 6330 | 2000 | 25.9 | 382,8 | |
| ZR28K3-PFJ | 2.33 | 6.83 | 6910 | 2150 | 27.2 | 382,8 | |
| ZR30K3-PFJ | 2.5 | 7.3 | 7380 | 2290 | 28.6 | 405,5 | |
| ZR32K3-PFJ | 2.67 | 7,55 | 7760 | 2410 | 28.1 | 405,5 | |
| ZR34K3-PFJ | 2.83 | 8.02 | 8200 | 2520 | 29.5 | 405,5 | |
| ZR36K3-PFJ | 3 | 8,61 | 8790 | 2700 | 29.5 | 405,5 | |
| ZR40K3-PFJ | 3.33 | 9.43 | 9670 | 2970 | 29.9 | 419.3 | |
| ZR42K3-PFJ | 3.5 | 9,94 | 10100 | 3120 | 29.9 | 419.3 | |
| ZR47K3-PFJ | 3.92 | 11.16 | 11500 | 3530 | 30.4 | 436.6 | |
| 3 Phase | ZR22K3-TFD | 1,83 | 5.34 | 5330 | 1650 | 25.9 | 382,8 |
| ZR24K3-TFD | 2 | 5,92 | 5920 | 1840 | 25.9 | 382,8 | |
| ZR26K3-TFD | 2.17 | 6.27 | 6330 | 1960 | 25.9 | 382,8 | |
| ZR28K3-TFD | 2.33 | 6.83 | 6910 | 2150 | 26.3 | 405,5 | |
| ZR30K3-TFD | 2.5 | 7.3 | 7380 | 2290 | 26.3 | 405,5 | |
| ZR32K3-TFD | 2.67 | 7,55 | 7760 | 2410 | 26.3 | 405,5 | |
| ZR34K3-TFD | 2.83 | 8.02 | 8200 | 2500 | 28.6 | 405,5 | |
| ZR36K3-TFD | 3 | 8,61 | 8790 | 2680 | 27.2 | 405,5 | |
| ZR40K3-TFD | 3.33 | 9.43 | 9670 | 2950 | 28.6 | 419.3 | |
| 2ZR42K3-TFD | 3.5 | 9,94 | 10100 | 3090 | 28.6 | 419.3 | |
| ZR45KC-TFD | 3.75 | 10,73 | 11000 | 3380 | 28.6 | 436.3 | |
| ZR46KC-TFD | 3.83 | 10,95 | 11100 | 3390 | 34,9 | 456,9 | |
| ZR47KC-TFD | 3.92 | 11.16 | 11500 | 3500 | 28.6 | 436.3 | |
| ZR49KC-TFD | 4,08 | 11.45 | 11700 | 3600 | 35.4 | 456,9 | |
| ZR54KC-TFD | 4.5 | 12,73 | 12900 | 4030 | 35.4 | 456,9 | |
| ZR57KC-TFD | 4.75 | 13.42 | 13700 | 4160 | 35.4 | 456,9 | |
| ZR61KC-TFD | 5,08 | 14.34 | 14600 | 4430 | 35,8 | 456,9 | |
| ZR68KC-TFD | 5.75 | 16.18 | 16400 | 4970 | 38.1 | 456,9 | |
| ZR72KC-TFD | 6 | 17.05 | 17400 | 5250 | 38.1 | 456,9 | |
| ZR81KC-TFD | 6.75 | 19.2 | 19690 | 5830 | 40,9 | 462.4 | |
| ZR84KC-TFD | 7 | 19,75 | 20330 | 6140 | 56,7 | 495.3 | |
| ZR94KC-TFD | 8 | 22.14 | 22940 | 7000 | 58 | 495.3 | |
| ZR108KC-TFD | 9 | 25.15 | 26250 | 7830 | 72.6 | 533.4 | |
| ZR125KC-TFD | 10 | 28,77 | 30470 | 9060 | 78. | 533.4 | |
| ZR90K3-TWD | 7,5 | 20.9 | 21540 | 6620 | 91. | 542 | |
| ZR11M3-TWD | 9 | 24.9 | 25840 | 7805 | 91. | 542 | |
| ZR12M3-TWD | 10 | 28.8 | 29890 | 8955 | 92 | 542 | |
| ZR16M3-TWD | 13 | 35,6 | 37330 | 11175 | 98 | 557 | |
| ZR19M3-TWD | 15 | 42.1 | 45170 | 13400 | 112 | 596 | |
