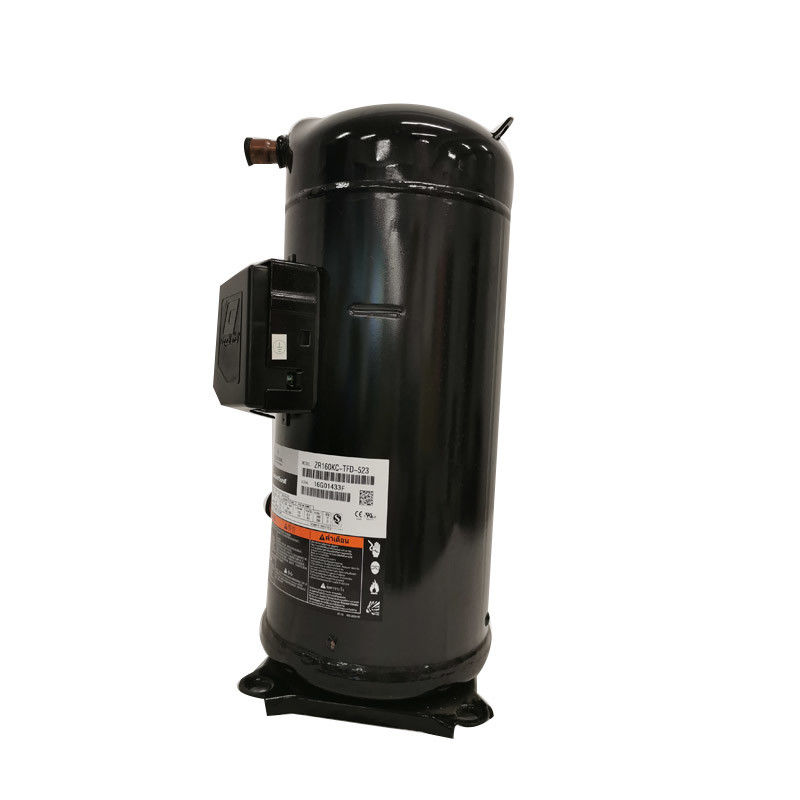

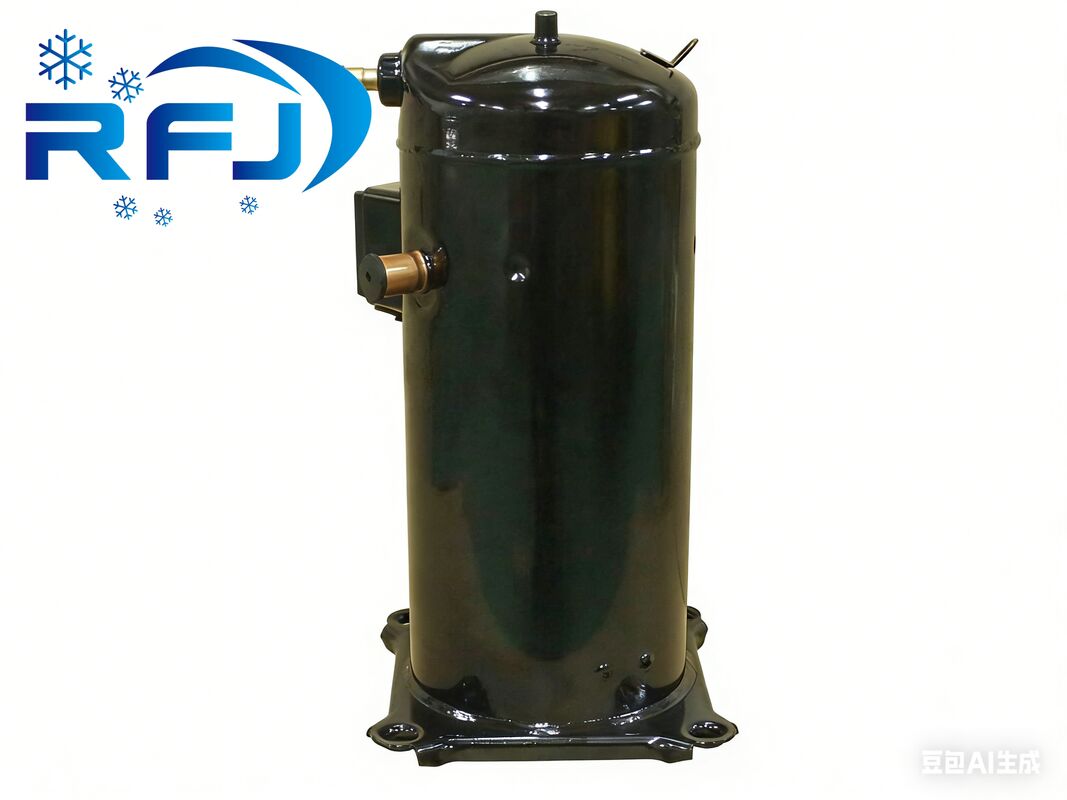

Abkühlungs-Rollen-Kompressor Copeland R407c Zh40kve-Twd

Name: Abkühlungs-Rollen-Kompressor Copeland R407c Zh40kve-Twd
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: Zh40kve-Twd
Price: 253.00 USD
Availability: InStock

Markenbezeichnung:	copeland
Modellnummer:	Zh40kve-Twd
MOQ:	1pcs
Preis:	community
Lieferzeit:	5-8 Tage nach Zahlung
Zahlungsbedingungen:	T/T, Western Union

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

CHINA

Zertifizierung:

Art:

Kühlschrankkompressor

Verschiebung [m-³ /h:

Schallleistung [DBA:

Nettogewicht [Kilogramm:

Bruttomasse [Kilogramm:

Ölgebühr [dm-³:

Stromversorgung [V/~/Hz:

PED-Kategorie:

Verpackung Informationen:

Holzkiste

Versorgungsmaterial-Fähigkeit:

10000pcs /week

Hervorheben:

R407c-Kühlschrank-Kompressor

Zh40kve-Twd

Beschreibung des Produkts

R407c Copeland Scroll Compressor Fro Heat Pump Zh40kve-Twd with Best Price

1, Product Description:

Type: Hermetic scroll compressors

Producer: Copeland

Series: ZH

Model: ZH40KVE-TWD

Technical data


Displacement [m³/h]:	35,5
Sound power [dBA]:	83
Sound power with sound shell [dBA]:	73
Sound pressure level [dB]:	72
Net Weight [kg]:	103
Gross Weight [kg]:	110
Oil charge [dm³]:	4,1
Maximum high pressure [bar]:	32
Maximum standstill pressure [bar]:	22,6
Minimal lowside temperature [°C]:	-35
Maximum lowside temperature [°C]:	50
PED category:	2

Electrical data


Power supply [V/~/Hz]:	380-420V/3/50Hz
Locked rotor current [A]:	167
Max. operating current [A]:	26,7
Winding resistance [Ω]:	0,8

Connections

		inches
Suction connection with supplied sleeve:		1 3/8"
Discharge connection with supplied sleeve:		7/8"

Abkühlungs-Rollen-Kompressor Copeland R407c Zh40kve-Twd 0

2.Features
Copeland Scroll axial and radial compliance for high reliability
High efficiency and increased heating capacity
High water temperature for all applications
Low sound and low vibration level
Tandem combination for superior seasonal efficiency

3.Drawings

Abkühlungs-Rollen-Kompressor Copeland R407c Zh40kve-Twd 1

ZH12K4E to ZH45K4E,ZH56K4E to ZH11M4E, ZH06KVE to ZH18KVE PFS-582,ZH04K1P to ZH19K1P , etc.
1,refrigerant: R134a,R407C,R410a
2,Quiet Operation- ZH heating compressors have been designed for low sound levels, a specific requirement for indoor heat pumps.High efficiency,Low price

3.High Efficiency

ZH heating compressors with Enhanced Vapor Injection have

been further optimized to ensure best-in-class performances

in dedicated heating applications. This technology allows

replacement of traditional boilers in new building and retrofit

applications, without the need of substituting existing heating

elements in the building.ZH Copeland Scroll heating compressors with Enhanced Vapor

Injection have an additional port to inject vapor within the

compression process. This improves system performances

by increasing the heating capacity for a given compressor

displacement. Additional benefits are the reduction of the gas

4, Our main compressor lines are :

· compressors,

· Copeland scroll compressors: CR,VR, ZB ,ZR, ZF,ZP SERIES

· Copeland Semi-hermetic compressors: DL,D2,D4,D6,D8 SERIES

· performer compressors: SM, SZ, SH SERIES

· commercial compressors: FR, SC SERIES

· Maneurop piston compressors:MT, MTZ, NTZ, MPZ SERIES

· Secop compressor, Carrier(Carlyle) compressor

· Hitachi compressor,Daikin compressor, Sanyo compressor

·Tecumseh compressor, LG compressor, Mitsubishi compressor,

·Toshiba compressor, Panasonic compressor, Embraci Aspera compressor
